Thin-R XT/TL Thermal Liner is Xtratherm PIR core with a composite kraft facing bonded to 12.5mm tapered edge plasterboard. The kraft facing on both sides incorporates a vapour control layer to help reduce the risk of condensation. It is designed to provide high levels of thermal insulation and drylining in one operation.

Insulation and Drylining in one application.

Effective Vapour Control Layer

Reduced Insulation Thickness

Zero ODP and GWP < 5.

Thickness: 62.5mm (25mm PIR 12.5mm Plasterboard)
Width: 1200mm
Length: 2400mm
Board coverage: 2.88 m²
Board Profile:
Tapered Edge - Plasterboard
Square Edge - PIR
Thermal Conductivity: 0.022 W/mK (PIR Only)
R-Value: 2.25 m²K/W
Fire Rating: Euroclass B-s1, d0

Application:

Suitable for New Build and Refurbishment Projects.
Suitable for Walls, Floors and Roofs.

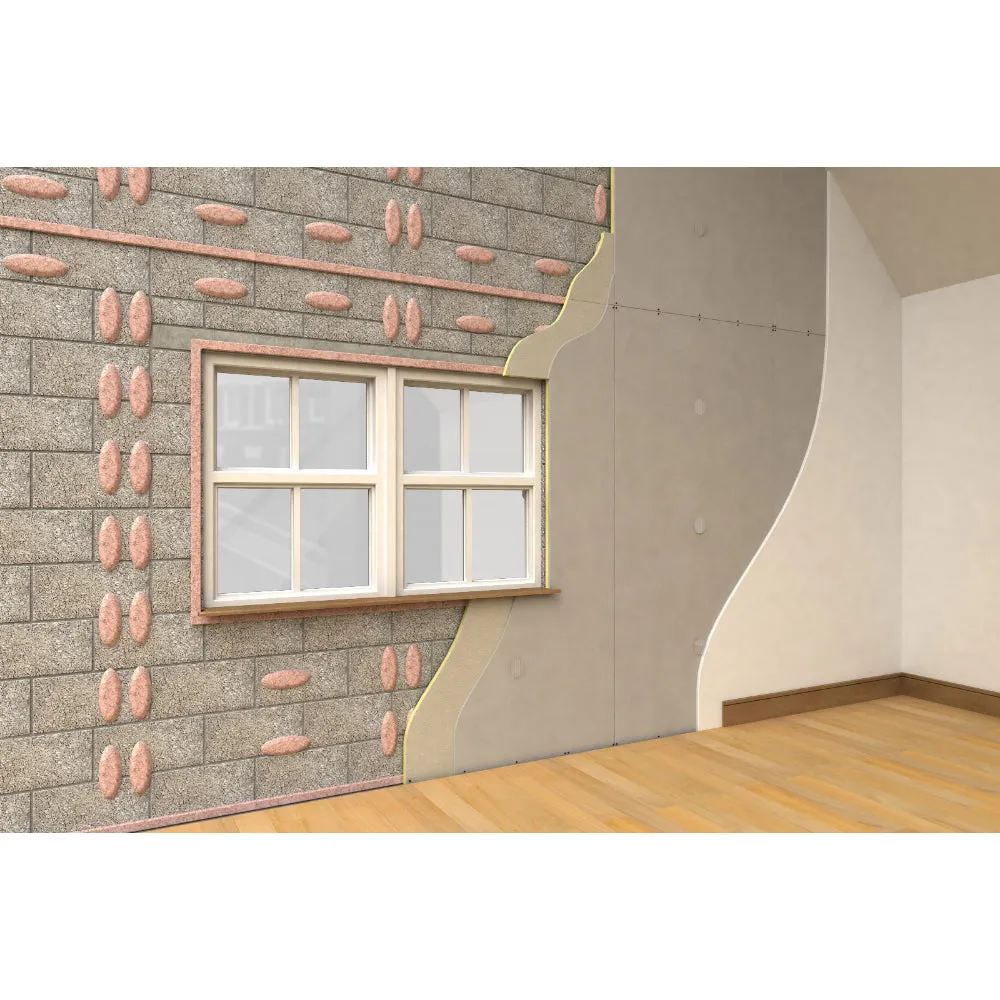

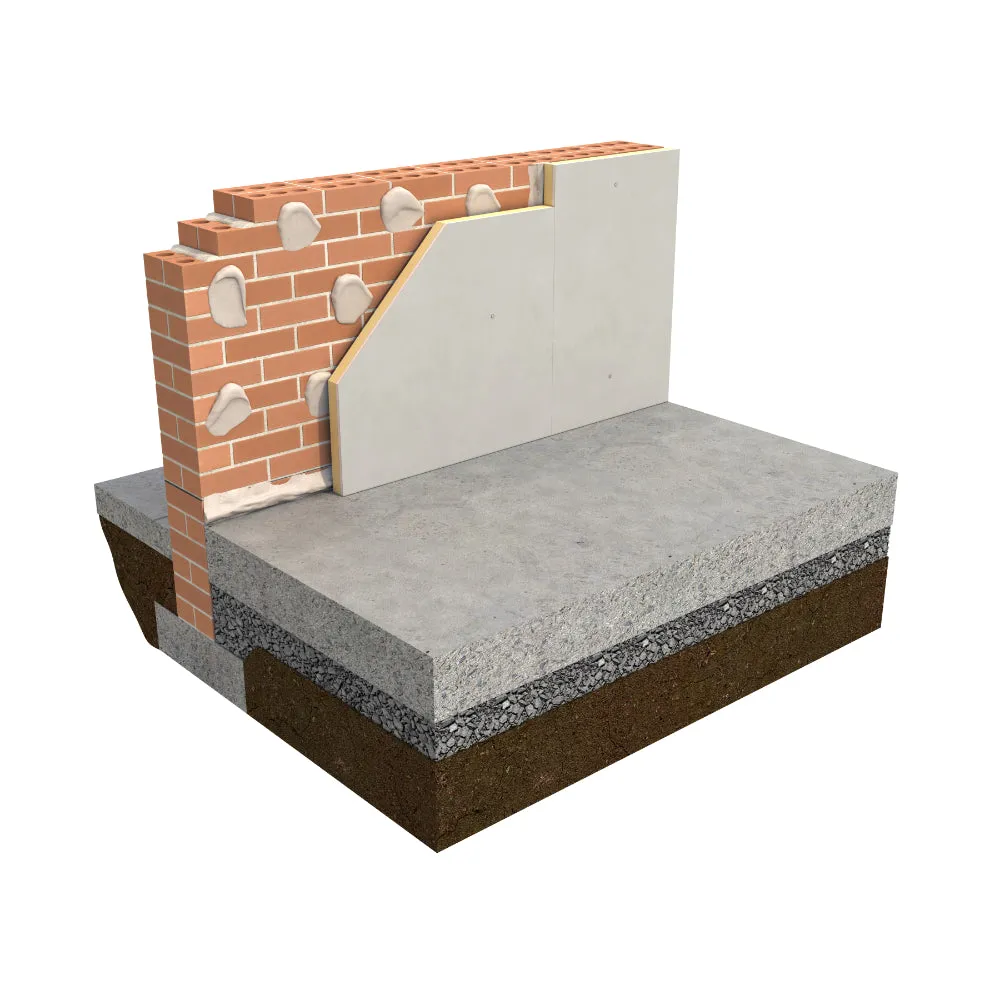

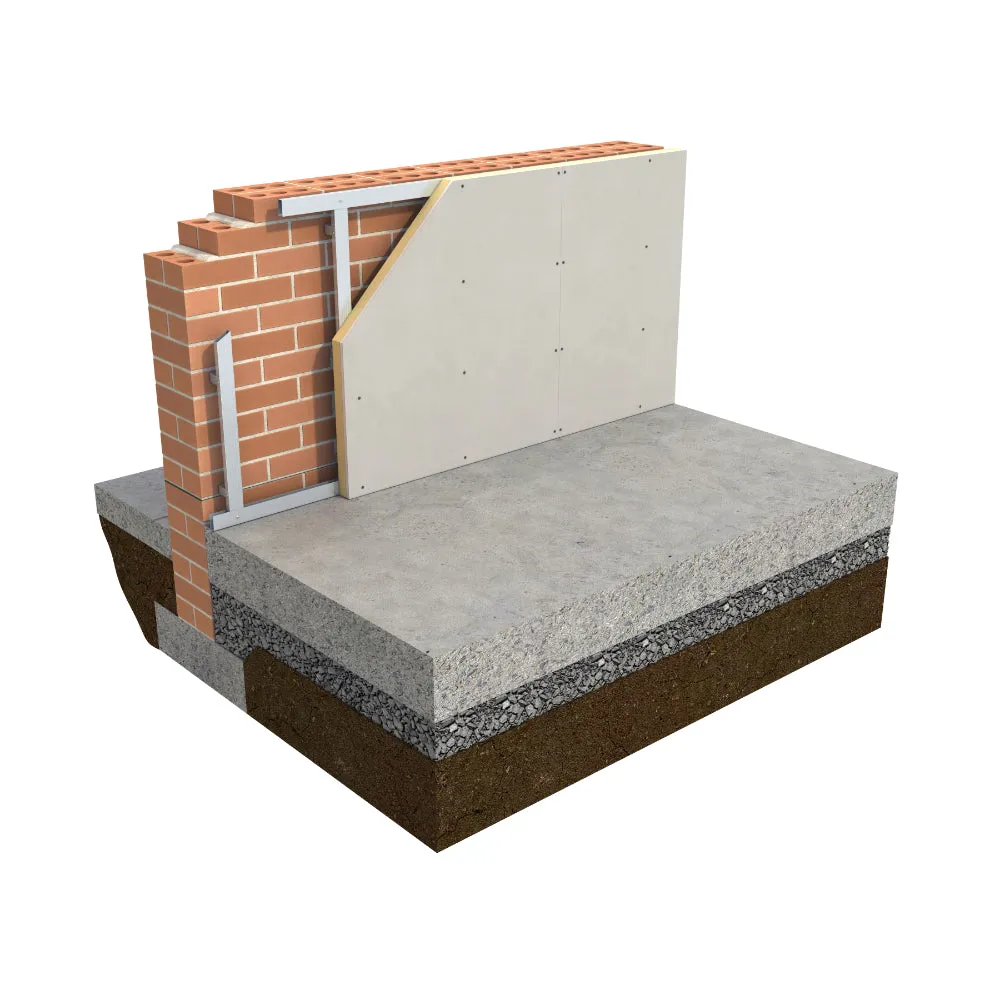

Suitable for Mechanical Fixing or Dot & Dab.

Certification:

ISO9001 - Quality Management Systems
ISO14001 - Environmental Management
A  rating on BRE Green Guide
BBA Certification No. 04/4130
